상세 정보 |
|||
| 운영 범위: | 9V ~ 16V/19 ~ 26V | 명사 같은: | 12V/24V 상수 |
|---|---|---|---|
| 자격증: | 3c | / 분 무부하 속도 Ｒ: | 11900 rpm Max |
| 노로드 전류 a: | 0.29 최대 | 최대 효율의 속도: | 8891 RPM MAX |
| 최대 효율로 전류: | 0.82A 최대 | 최대 효율로 EFF: | 최대 61.4% |
| 강조하다: | Long Lifespan Brushless Motors,High Efficiency Brushless Motors,2418 Brushless Motors |
||
제품 설명

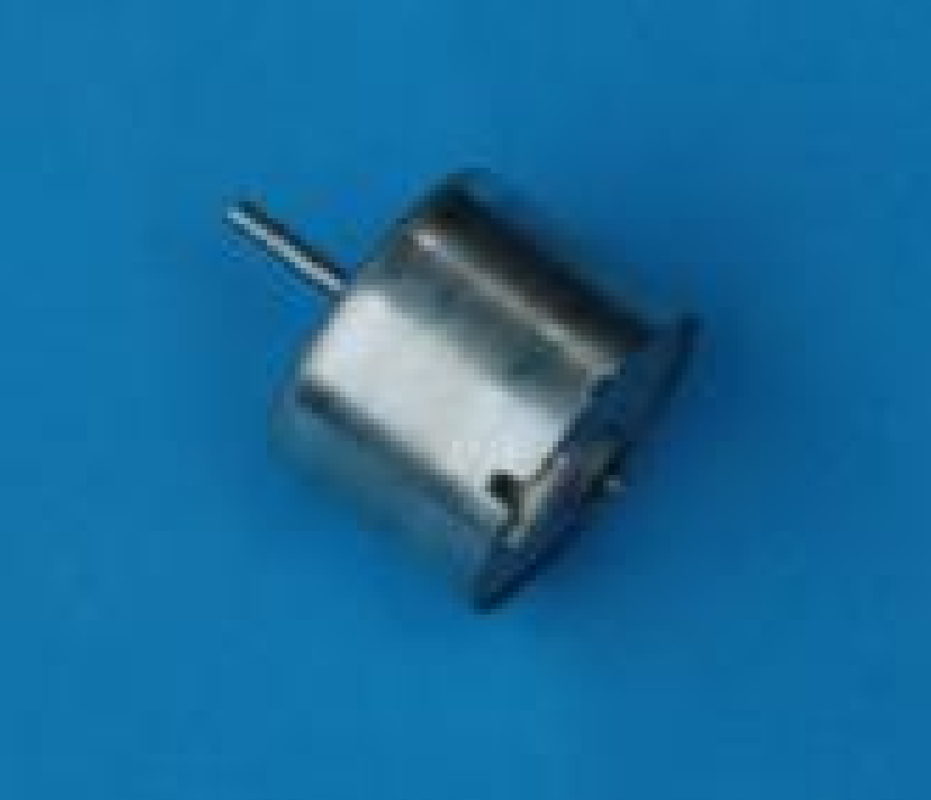

BLDC 2418 Brushless Motors High Efficiency and Long Lifespan For Electric Shaver
Features
1.High Efficiency and Long Lifespan: BLDC motors are known for their high efficiency, often reaching up to 97%. The BLDC 2418 motor also boasts a long lifespan, with some models capable of continuous operation for up to 15,000 hours.
2.Low Noise and Low EMI: These motors are designed to operate quietly, making them suitable for applications where noise control is important. They also produce low electromagnetic interference (EMI), which is crucial for sensitive electronic environments.

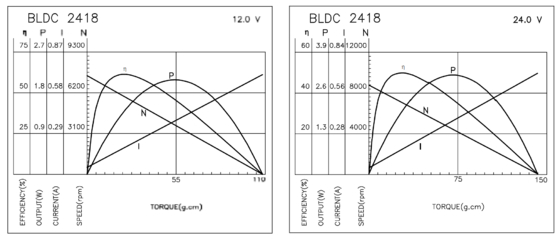

Brushless Motor Technical Data
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
|
OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | TORQUE | |
| RPM | A | RPM | A | g.cm | % | g.cm | ||||
| BLDC-2418-1 | 9V~16V | 12V CONSTANT | 10250 | 0.29 | 7585 | 0.82 | 73.4 | 5.7 | 57.7 | 282.4 |
| BLDC-2418-2 | 9V~16V | 12V CONSTANT | 7500 | 0.07 | 8863 | 0.194 | 81.5 | 1.2 | 52.8 | 105.0 |
| BLDC-2418-3 | 19V~26V | 12V CONSTANT | 11900 | 0.19 | 8891 | 0.56 | 90.6 | 8.3 | 61.4 | 358.4 |
| BLDC-2418-4 | 19V~26V | 12V CONSTANT | 8700 | 0.04 | 6556 | 0.17 | 32.9 | 2.2 | 54.4 | 144.0 |
TYPICAL APPLICATION:
1.Electric Shaver
2.Home Application
