상세 정보 |
|||
| 저항 공차: | ±10% 정밀도 | 전력 등급: | 0.5W(70℃)0W(120℃) |
|---|---|---|---|
| 저장 온도 범위: | -25℃~+125℃ | 셰프트 토크: | 50~150gf.cm |
| 저항: | 1KΩ~10KΩ | 패키지 / 케이스: | 금속 플라스틱 |
| 조정 여행: | 200°/240°/300°/340° | IP 범위: | IP67 |
| 특징: | 선도성 플라스틱 잠재미터 | ||
| 강조하다: | IP67 waterproof precision potentiometer,conductive plastic rotary potentiometer,angular displacement sensor potentiometer |
||
제품 설명

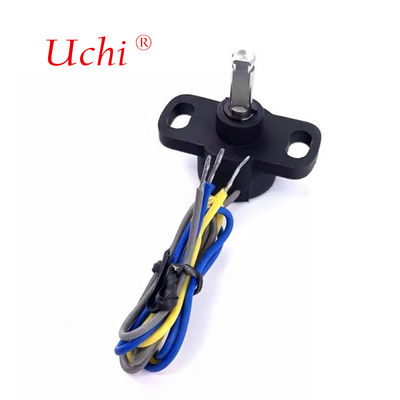

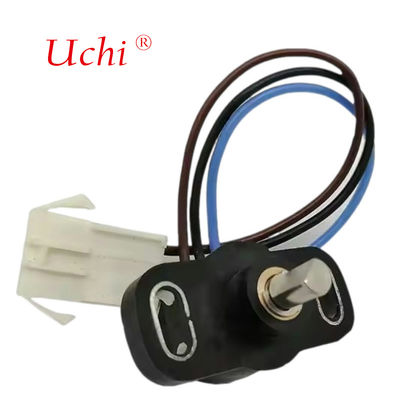

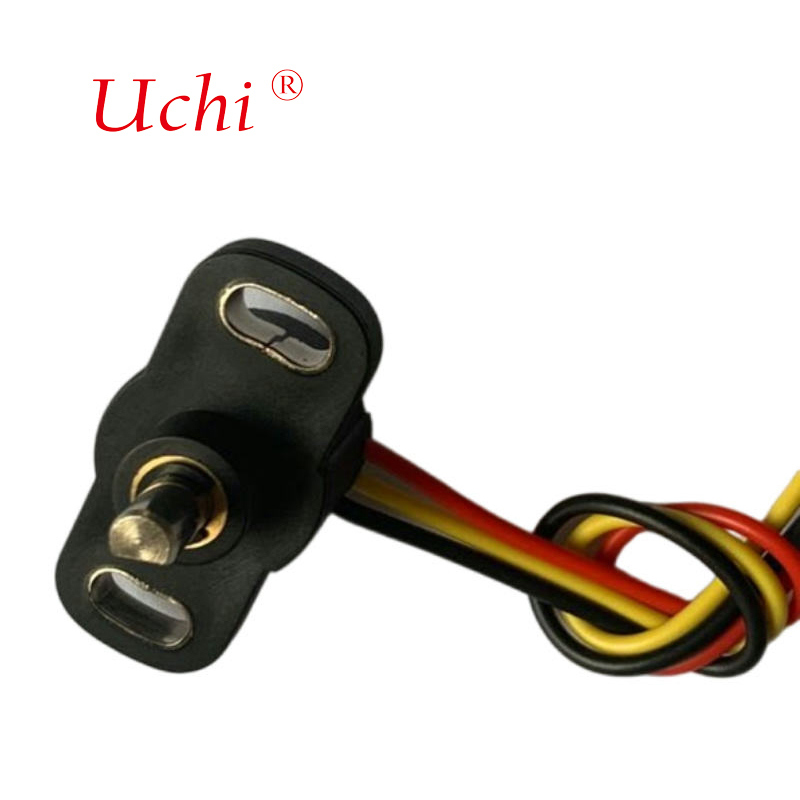

IP67 Grade OF22 Waterproof Conductive Plastic Rotary Precision Potentiometer
Angular Displacement Sensor
The conductive plastic angular displacement sensor features a linear relationship between voltage output and shaft rotation angle. This precision instrument offers high accuracy, extended operational life, and exceptionally smooth output characteristics.
Technical Specifications
Electrical Characteristics
| Resistance Range | 1K-10K |
| Resistance Tolerance | ±10% Precision,±20% Standard |
| Independent Linearity | ±0.5% |
| Power Rating | 0.5W(70°C)0W(120°C) |
| Resolution | Essentially infinite |
Environmental Specifications
| Operating Temperature | -25°C~ 125°C |
| IP Rating | IP67 |
| Rotational Life | 5,000,000 cycles (R/R≤±7%) |
Mechanical Specifications
| Shaft Torque | 50~150gf.cm |
| Stop Strength | >40N.cm |
| Shaft Strength | 125 N min (push/tensile) |
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing.
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
