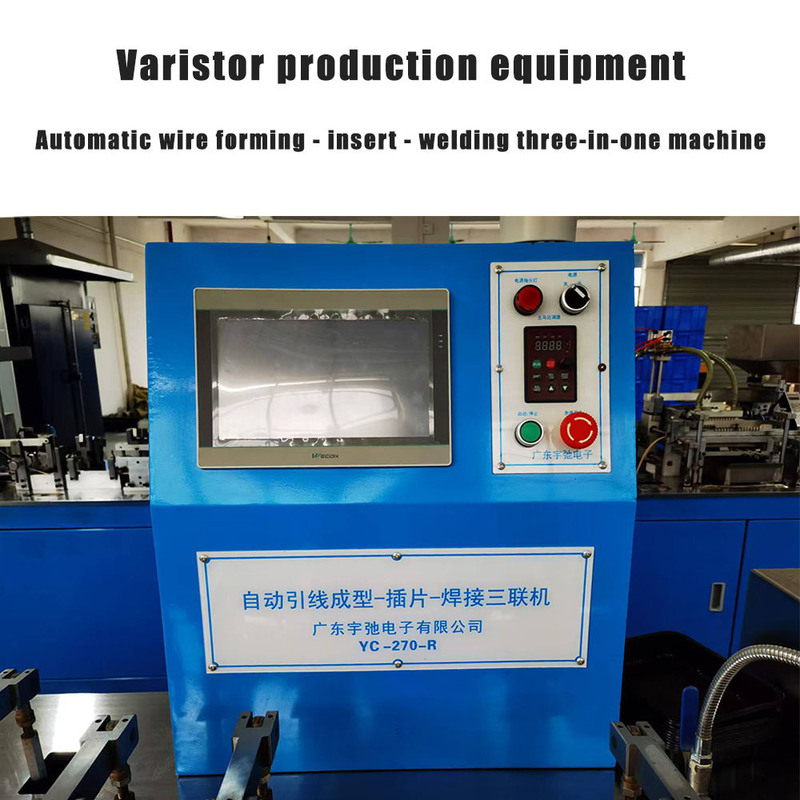

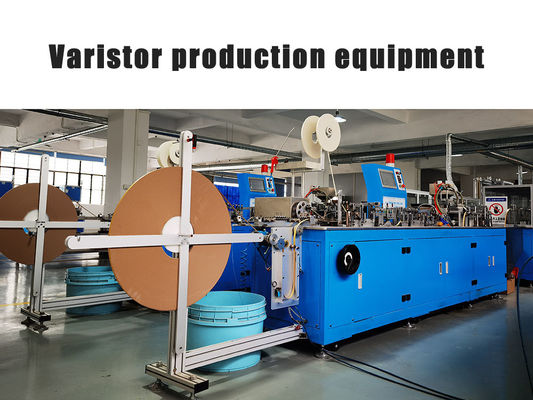

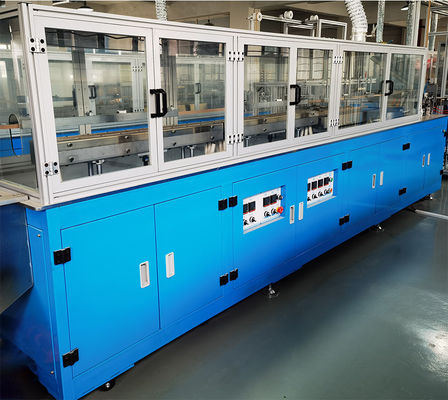

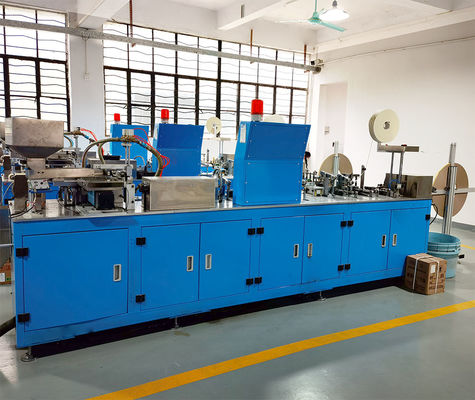

Automatic Production Machine For Varistors
Features an automatic three-in-one system for wire forming, chip insertion and welding.
Basic Operation Process
  • Wire feeding section and motor belt feeding
  • Straight wire feeding
  • U-shaped cutting
  • Punching
  • Driven by the embossing wheel of the wire divider
  • Wire alignment
  • Flattening the long arm
  • Floating foot position 1
  • Floating foot position 2
  • Parallel foot position
  • Gold mold forming
  • Tensioning before inserting pieces
  • Driven by the needle wheel of the wire divider
  • Buffering
  • Applying solder
  • (Blowing and drying) natural drying
  • Inserting pieces
  • Driven by the needle wheel of the wire divider
  • First preheating zone
  • Second preheating zone
  • Dip welding
  • Step drive
  • Natural cooling buffer
  • Buffer
  • Step drive
  • Cutting
  • Buffer frame
Technical Parameters and Requirements
Machine Dimensions 10 meters long, approximately 1,500 kg weight
Machine Model YC-270-R
Product Pitch 10mm
Aperture 2.5mm 28 single-row paper tape products
Production Efficiency 180-260pcs/min (Pitch10)
Ceramic Tile Size Diameter: 7D, Sheet thickness: T≤3.5mm
Lead Wire Specification φ0.56mm
Power Usage AC380V, 50HZ; Air source: 5kg/cm; Total power approximately 16KW
Warranty Period One year (excluding human factors and natural disasters)
Additional Technical Specifications
  • Wire feeding mold: 0.56 specification mold (on assembly table)
  • Maximum length of paper tape for wire feeding: 35mm
  • U-shaped mold width: F5mm (1 set installed on machine)
  • Alignment mechanism: Five sets of V-shaped bearings (13 in each set)
  • Paper tape size: Three-in-one paper tape 14.5x0.85mmx1000m
  • Machine equipped with two sets of forming mechanisms: floating feet and parallel feet
  • Flux application with flow detection switch to prevent empty welding

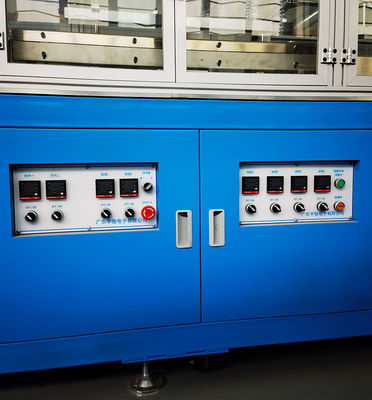

  • Preheating tanks: Two groups (each 896mm long)
  • Dip soldering tank with three heating units
  • Machine frame: Welded plates with blue baked paint panel
  • Noise reduction design with spiral bevel gear and synchronous belt transmission
  • Includes all vulnerable parts, spare parts and related component drawings
Equipment Schematic
