상세 정보 |
|||
| 가공 서비스: | 절단, 펀칭, 디코일링, 벤딩, 드릴링 | 성질: | T3 ~ T8 |
|---|---|---|---|
| 포장: | 체육 가방 판지 | 용인: | ±1% |
| 기준: | 중간 및 고품질 알루미늄 방열판 | 깊은 과정: | CNC 가공 |
| 재료: | 구리, 알루미늄 | 기술: | CNC 및 스카이빙 |
| 두께: | 0.5-2.5mm | 애플리케이션: | 기계 및 자동차 분야 |
| 강조하다: | copper liquid cooling plate,mini-fin cold plate,square heat sink cooler |
||
제품 설명

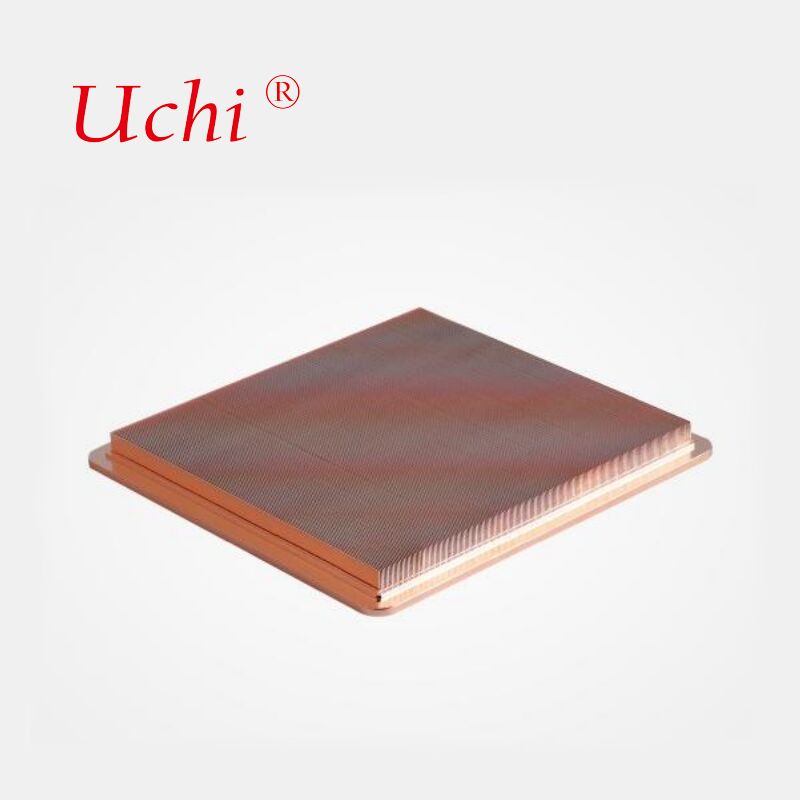

Square Mini-fin Liquid Cold Plate
High-performance copper cooler plate heat sink designed for efficient thermal management in demanding applications.
Product Specifications
| Product Name | Custom Heat Sinks |
| Common Materials | Copper, aluminum, other metals |
| Product Type | Copper Tube Radiator, Module Radiator, Heat Sink, Vapor Chamber, Liquid Cooling Plate, Zipper Fin Heatsink |
| Applications | Automotive radiators, AI server/data center cooling, Consumer electronics, Industrial machinery, Medical equipment, Household appliances |
Company Expertise
10+ years experience in thermal systems
50+ patents filed in thermal technology
15+ R&D engineers dedicated to innovation
5 Ph.D.'s in thermal sciences
Service Capabilities
Complete service offering including 3D drawing design, die development, production, machining, surface finishing and assembly services.
Software & Technical Advantages
- Advanced 3D Pro/E design capability
- CFD thermal management simulation analysis
- Precision CNC program control
Quality Standards
IATF 16949:2016, GB/T19001-2016/ISO9001:2015, GB/T24001-2016/ISO14001:2015
Machining Processes
Cutting, Punching, Drilling, Bending, Welding, Milling, CNC machining, and more
Natural Cooling Technology
Natural cooling leverages high thermal conductivity materials to conduct heat away and dissipate it into the air. Our expertise includes copper-aluminum heat sinks, aluminum alloy extruded components, machined heat dissipation components, and alloy cast heat dissipation components.
Technological Innovations
We have achieved multiple breakthroughs in natural cooling technology, including:
- High-density skived fin technology for ultra-thin fins and fine pitch
- Advanced friction welding for ultra-wide structure heat dissipation
- Superior heat dissipation performance with 100% profile thermal conductivity utilization
Our innovations have enabled significant improvements in heat dissipation efficiency for applications including UPS systems, power supplies, inverters, solar energy storage, power batteries, and rail transit motors.
Temperature distribution diagram of heat sink in horizontal direction
Temperature distribution diagram at the center section of the model
Industry Applications
High-end Manufacturing
- Semiconductor & Chip Manufacturing: Advanced packaging thermal solutions for 3D stacking
- AI Computing/Data Centers: High heat flux density cooling for computing power optimization
- Aerospace: Thermal management for extreme temperature and vacuum environments
Daily Life Applications
- Digital Devices: Computers, mobile phones, game consoles
- Communication Devices: High-speed data transmission systems
- Household Appliances: Compressors and condenser units
- Lighting Devices: LED lamp bead thermal management
- New Energy Vehicles: Sophisticated liquid cooling systems
Manufacturing Capabilities
Our advanced mold workshop features 22 EDM machines including MAKINO mirror EDM and Seibu/Sodick wire-cut EDM machines from Japan, plus comprehensive grinding, milling, and turning equipment.
Equipment Specifications
- Table size: 500×350 mm
- Rapid traverse speed: 5000 mm/min
- Maximum workpiece weight: 500 kg
- Maximum electrode weight: 50 kg
Precision Engineering
Utilizing SuperSpark4 and IES technologies for advanced adaptive power supply and jump control, ensuring excellent surface finish and metallurgical quality.
Product Applications
Quality Assurance
Comprehensive testing equipment ensures product reliability:
- Coordinate Measuring Machine
- Projector instrument
- Water high pressure testing machines (2 units)
- Thermal resistance testing machines (4 units)
- Liquid leakage testing machines (2 units)
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
