제품 설명

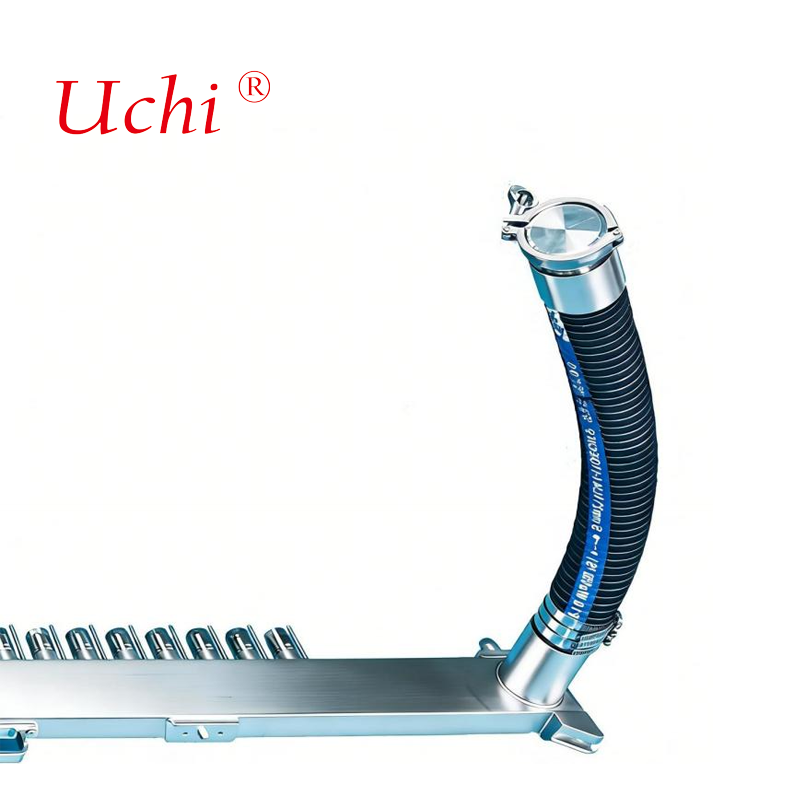

Customized Water Cooling Distribution Plate Accessories
Customized water cooling distribution plate accessories for aluminum cooler plates and manifolds designed for precision liquid cooling systems.
Product Overview
The manifold (also referred to as a liquid cooling manifold) serves as the central hub for fluid distribution and collection in liquid cooling systems. Through pressure-stabilized distribution and centralized collection, it ensures uniform cooling fluid distribution among multiple branch cooling units, maintaining consistent heat dissipation performance throughout the system.
Product Features
- Welded branch ports for excellent sealing performance
- High hydraulic pressure resistance and corrosion resistance
- Reliable and safe operation
- Simple, aesthetically pleasing bracket design
- Easy installation with space-saving mounting
Technical Specifications
| Length Range | 50 cm ~ 250 cm |
| Common Materials | Aluminum / Copper / Stainless Steel |
Application Scope
Floor heating, data center heat dissipation, tap water supply systems, air conditioning heat dissipation, industrial water systems
Key Application Scenarios
- New Energy Vehicle Battery Packs: Adapted to series-parallel battery module layouts, connecting to cold plates to maintain temperature differences within ±2℃ and prevent thermal runaway
- Data Center Server Cooling: Hierarchical distribution design for CPU/GPU cold plates in high-density cabinet configurations
- Industrial Frequency Converter Heat Dissipation: Compact integrated design for precise local heat dissipation of power modules
Manufacturing Capabilities
Advanced Equipment Infrastructure
Our mold workshop features comprehensive manufacturing capabilities including:
- 22 EDM machines (including 2 MAKINO mirror EDM)
- 9 wire-cut EDM machines (3 Seibu, 1 Sodick from Japan)
- 7 spark erosion machines
- 10 grinding machines
- 2 milling machines
- 1 lathe
Technical Specifications
| Table Size | 500×350 mm |
| Rapid Traverse Speed | 5000 mm/min |
| Maximum Workpiece Weight | 500 kg |
| Maximum Electrode Weight | 50 kg |
High Precision Machining
Utilizing SuperSpark4 and IES (Intelligent Expert System) technologies for advanced adaptive power supply and jump control, ensuring stable EDM processes and improved machining precision. Equipped with ultra-surface and ultra-edge generator technologies for exceptional surface finish and metallurgical quality.
Liquid Cooling System Technology
High-power liquid cooling systems require heat sinks capable of rapid heat absorption. Leveraging the high specific heat capacity of liquids, our systems transfer substantial heat through liquid flow, capable of dissipating heat ranging from several hundred watts to over one kilowatt.
Liquid Cold Plate Varieties
- Buried-tube Liquid Cold Plate: Fabricated by grooving plates, burying and welding copper tubes, then hermetically sealing via welding for reliable liquid tightness and excellent thermal contact
- Inserted-tube Liquid Cold Plate: Manufactured by embedding copper tubes onto aluminum plate surfaces using welding or bonding processes with strict flatness control
- Channel-type Liquid Cold Plate: Internal flow channels formed on copper or aluminum substrates through drilling, extrusion, and precision machining, sealed via friction welding or high-temperature brazing
- Liquid Cooling Block: For high-power chip heat dissipation with internal flow channels created through skiving fin technology to maximize heat exchange surface area
Quality Assurance
We maintain rigorous quality standards with comprehensive testing equipment including:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
