The MZ32 series is a positive temperature coefficient (PTC) thermistor-type
제품 상세 정보:
| 원래 장소: | 둥관, 광동, 중국 |
| 브랜드 이름: | UCHI |
| 인증: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
| 모델 번호: | FSM6-E50 |
결제 및 배송 조건:
| 최소 주문 수량: | 1000개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 대부분 |
| 배달 시간: | 5~7일 |
| 지불 조건: | 전신환, 페이팔, 웨스턴 유니온, 자금 그램 |
| 공급 능력: | 한달에 5000,000,000PCS |
|
상세 정보 |
|||
| 트립 전류: | 360mA | 작동 전압: | 6V~240V |
|---|---|---|---|
| 가열 매체: | 세라믹 PTC | 전압: | 220V |
| 복구 시간: | ≤60s | 패키지: | 거품 패키징 |
| 최대전류: | 모델에 따라 다르지만 일반적으로 최대 수 암페어에 이릅니다. | 센서 유형: | 3상 모터 보호 |
| 전압 정격: | 220VVrms | 맥스 전압: | 270VVrms |
| 케이블 길이: | 620mm | 항복 전압: | 700 Ｖ |
| 강조하다: | PTC thermistor temperature sensor,MZ32 series thermistor,positive temperature coefficient thermistor |
||
제품 설명

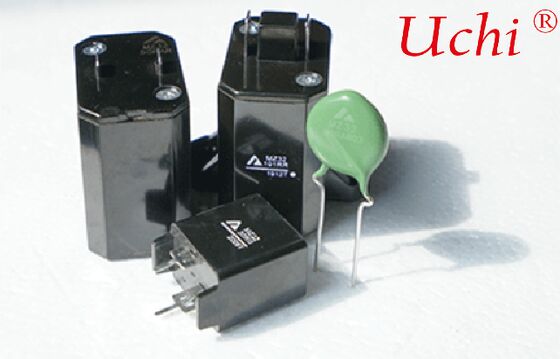

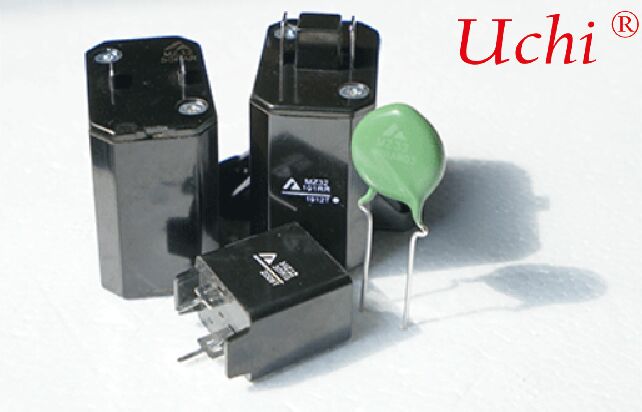

MZ32 Inrush Current Suppression Series (PTC Thermistor)
Product Overview
The MZ32 series is a positive temperature coefficient (PTC) thermistor inrush current suppressor. It is specially designed for surge peak current at the moment of power-on in high-power circuits, protecting rectifier bridges, power semiconductors, filter capacitors and fuses from overcurrent impact. It features dual functions of current limiting + self-recovery.
Working Principle
It maintains low resistance at room temperature, which can slowly charge large-capacity capacitors and suppress inrush current during power-on;
As the current rises, the component heats up and its resistance increases sharply, entering a high-resistance current-limiting state;
After the surge disappears or power is cut off, the temperature drops and the resistance automatically returns to a low value for repeated use, with the characteristics of a self-recovering fuse.
Product Features
✅ High-power suppression: Specially applied to suppress power-on inrush current of AC-DC power supplies, inverters, transformers and motor inductive loads;
✅ High voltage resistance: AC 120V～500V, covering mainstream voltage for industrial and consumer electronics;
✅ Wide resistance range: 10Ω～1000Ω, available for selection according to load matching;
✅ Stable and reliable: Ceramic substrate with flame-retardant packaging, low drift during long-term operation;
✅ Self-recovery: No replacement required, automatic reset after fault elimination, low maintenance cost;
✅ Multiple structures optional: A chip type, B housing type and C coating type, adapting to different installation spaces.
Typical Applications
High-power switching power supplies, industrial inverters, UPS;
Compressor and motor start-up for home appliances (air conditioners, refrigerators, washing machines);
New energy equipment and charging pile power modules;
Magnetizing inrush current suppression for inductive loads such as transformers and reactors;
Medical and communication power supplies, as well as various large-capacity capacitor input circuits.
Typical Core Parameters
Withstand Voltage: AC 220V / 380V / 500V (optional)
Resistance: 20Ω / 50Ω / 100Ω (@25℃)
Steady-state Current: 3A～15A (depending on model)
Curie Temperature: Approx. 125℃
Package: Insulated housing / epoxy coating, UL94 V-0 flame retardant grade
Selection Guidelines
The higher the power supply power and capacitor capacity, the smaller the resistance and the larger the steady-state current specification shall be selected;
Common model for 220VAC, 1–2kW power supply: MZ32-50Ω/8A;
Common model for 380VAC, 3–5kW power supply: MZ32-100Ω/10A.
